Fresenius Kabi

Agilia SP

Request Quotation

Agilia SP MC

Request Quotation

Agilia SP PCA

Request Quotation

Agilia SP TIVA

Request Quotation

Agilia VP

Request Quotation

Agilia VP MC

Request Quotation

Infusia VP7

Request Quotation

Link + Agilia®

Request Quotation

CONOX

Request Quotation

MRI Guard Agilia®

Request Quotation

Amika®

Request Quotation

CATSmart

Request Quotation

Agilia SP | Basic Pump

Flow rate range: 0.1- 200 ml/h (depending on the syringe capacity – up to 1200 ml/h).
Flow rate accuracy: ± 1% on mechanism ; ± 2 % on syringes.
Syringe capacities: 5, 10, 20, 30/35, 50/60 CC.
Infusion Modes:
- ml/h (0.1 ml/h increments).
- Volume / time: Volume to infuse 0.1 to 99.9 ml /
- Time: 0 h 01 to 96 h 00.
- Volume limit: 0.1-999.9 ml (0.1 ml increments).
Bolus: Manual bolus: Rate 50-1200 ml/h (50 ml/h increments).
Drug library: Initial drug list of 50 agents adjustable with Vigilant®, the IV Medication Safety Solution. Adjustment of the dilution, authorised infusion modes, default infusion modes, flow rate and bolus limits in ml/h.
Pressure modes: 2 modes available: variable or 3 pre-set levels – From 100 to 900 mmHg, 50 mmHg increment.
DPS: The Dynamic Pressure System – DPS – warns of pressure variations. A risk of obstruction or a possible leak in the infusion line can thus be anticipated.
Anti-bolus system: Reduces significantly bolus after occlusion release (0.2 ml max).
Dimensions (H/W/D/) / Weight: 160 x 345 x 135 mm / 2150 g.
Battery: NI/MH / Battery capacity minimum: 10 hours at 5 ml/h / Battery replacement: separate compartment – no need for electrical security testing.
Power supply: 100 – 240 Vac / 15 VA, external power 9 Vdc by a converter.

Agilia SP MC | Comprehensive Pump

Flow rate range
0,1 – 1200 ml/h, depending on the syringe capacity (0,1 ml/h increment). 0,01 minimum increments instead of 0,1 ml/h is activated when the max patient weight is set to 20 kg in the Agilia Vigilant drug library. Flow rate can be limited according to the medicine name (soft and hard limits) with Agilia Vigilant Drug’Lib, IV Medication Safety System.

Flow rate accuracy
±1 % on mechanism : ± 2 % on syringes.

Syringes capacities
5, 10, 20, 30/35, 50/60 cc.

Type of syringe
Up to 100 types.

Infusion Modes
ml/h mode.
Dose rate mode: ng/h, ng/kg/min, ng/kg/h, microg/min, microg/h, microg/kg/min,microg/kg/h, mg/min, mg/h, mg/24h, mg/kg/min, mg/kg/h, mg/kg/24h,mg/m²/h, mg/m²/24h, g/h, g/kg/min, g/kg/h, g/kg/24h, mmol/h, mmol/kg/h,mmol/kg/24h, mU/min, mU/kg/min, mU/kg/h, U/min, U/h, U/kg/min, U/kg/h,kcal/h, kcal/24h, kcal/kg/h, mEq/min, mEq/h, mEq/kg/min, mEq/kg/h.
Dilution setting: — units / ml or — units / — ml.
With or without loading dose.
Volume or dose / time: 0,1 – 99,9 ml; 00 h 01 – 96 h 00.
Volume limit: 0,1 – 999 ml

Volume/Dose infused
Volume : 0,1 – 999,9 ml / Dose: 0,1 – 999,999 units

Priming
3 modes: mandatory, not mandatory, or advised / Rate: 1200 ml/h.

Bolus
– Direct bolus: Rate: 50 – 1200 ml/h (50 ml/h increment)
– Programmed bolus (dose or volume / time): 0,1 – 99,9 ml ; 0,1 – 9999 units / 1 min – 24 h.

Loading dose
Dose or volume / time: 0,1 – 99,9 units / 00 min 01 – 59 min 59 rate auto-calculation.

Agilia SP MC | Comprehensive Pump

End infusion (V/T & VL)
KVO: adjustable from 0,1 to 5 ml/h, continuous infusion or stop.

Fast start
Not mandatory prime set by default resulting in fast start if user does not prime with bolus button ensuring programmed flow rate to be reached faster.

Pause
Programmation from 1 minute to 24 hours, increments from minute to minute.

Data log event
1500 data log events in real time.

Graphical history
Volume / dose infused, pressure, flow rate.

Night mode
The night mode decreases the brightness of the screen and the green lights. The key beep can eventually be turned off. The night mode can be programmed manually or automatically in a variable time range.

Profiles
infusion without any display of the medicine names. 19 Custom profiles configurable with Agilia Vigilant Drug’Lib: Drug library to be created with Agilia Vigilant Drug’Lib. Configuration only: Custom pump configuration without medicine name.

Agilia SP MC | Comprehensive Pump

Manual pusher
Protection for the ongoing infusion thanks to “Push-Guard”.

Display
Blue graphic LCD monochrome, size 66 mm x 33 mm (256 x 128 pixels).

Swinglock clamp
Versatile clamp that allows the fixation on a rail or on a pole (Pole: 20-40 mm max. / Rail: 25-35 x 10 mm).

Stackability
Up to 3 devices self-stackable on a pole.

Dimensions (h/w/d) / weight
135 X 345 X 170 mm / ~ 2,1 kg.

Battery

Characteristics: 7,2 V 2,2 Ah – Li-ion Smart battery, remaining battery life and battery charge level available on the display.
Battery Life (when fully charged):
Agilia SP MC and Agilia SP MC WiFi (WiFi disabled / not used):
> 13 h at 5 ml/h.
Agilia SP MC WiFi (WiFi enabled):
> 9 h at 5 ml/h.

Battery recharge:
– Pump OFF: < 6 h.
– Pump ON: < 20 h.

Waterproofness
IP22

Power supply
100 V – 240 V ~ / 50 / 60 Hz with functional earth.

Agilia SP PCA

Flow rate range
0.1 – 1200 mL/h, depending on the syringe capacity (0.1 mL/h increment). Flow rate can be limited according to drug name (soft and hard limits) with Agilia Vigilant Master Med, IV Medication Safety System.

Flow rate accuracy
+/- 1% on mechanism : +/- 2 % on syringes.

Syringes capacities
5, 10, 20, 30/35, 50/60 CC.

Type of syringe
Up to 100 different types.

PCA Infusion modes

PCA bolus mode
Continuous rate mode
PCA bolus + continuous mode
PCA bolus + variable rates mode

All programmable in dosing units (mcg, mg, mcg/kg, mg/kg) or in volume (mL).

PCA bolus
0 to 10 mL, 0 to 100 mg, 0 to 1000 mcg, 0 to 100 mcg/kg, 0 to 10 mg/kg. rate from 40 to 1200 mL/h.

Lock out time
1 to 120 minutes.

Agilia SP PCA

Patient Handset
Ergonomic design, waterproof, with light, with handstrap, beep emission.

Clinician bolus
Available at start-up as a loading dose, available during the PCA cycle with a password.

Hardware & Software protection
Optional syringe protective cover with key lock, password required.

Cumulated limits

Adjustable in 1, 2, 4, 12 or 24 h.
In total dose given (in mL, or mg, or mg/kg, mcg, mcg/kg). and/or
In number of PCA boluses given.

PCA history

Follow-up from 1h to 24h.
Total dose given.
Number of PCA boluses attempted.
Number of PCA boluses given.
Number of clinician boluses.
Background dose.

General Infusion Modes

mL/h mode.
Dose rate mode: ng/h, ng/kg/min, ng/kg/h, microg/min, microg/h, microg/kg/min, microg/kg/h, mg/min, mg/h, mg/24h, mg/kg/min, mg/kg/h, mg/kg/24h, g/m2/h, mg/m2/24h, g/h, g/kg/min, g/kg/h, g/kg/24h, mmol/h, mmol/kg/h, mmol/kg/24h, mU/min, mU/kg/min, mU/kg/h, U/min, U/h, U/kg/min, U/kg/h, kcal/h, kcal/24h, kcal/kg/h, mEq/min, mEq/h, mEq/kg/min, mEq/kg/h.
Dilution setting: — units / mL or — units / — mL. With or without loading dose.
Volume or dose / time: 0.1 – 99.9 mL; 00 h 01 – 96 h 00.

Volume limit: 0.1 – 999 mL.

Agilia SP PCA

Volume/Dose infused
Volume : 0.1 – 999 mL / Dose: 0.1 – 9999 units.

Priming
3 modes: mandatory, not mandatory, or advised / Rate: 1200 mL/h.

Bolus
Direct bolus: Rate: 50 – 1200 mL/h (50 mL/h increment)

Programmed bolus (dose or volume / time): 0.1 – 99.9 mL ;

0,1 – 9999 units / 1 min – 24 h.

Pause
Program from 1 minute to 24 hours with 1 minute increment.

Data log event
1500 data log events in real time.

Night mode
The night mode decreases the brightness of the screen and the green lights. The key beep can eventually be turned off. The night mode can be programmed manually or automatically in a variable time range.

Profiles
Basic profil: infusion without any display of the drug names. 19 Custom profiles configurable with Agilia Vigilant Master Med: Drug library to be created with Agilia Vigilant Master Med. Configuration only: Custom pump configuration without Drug Name.

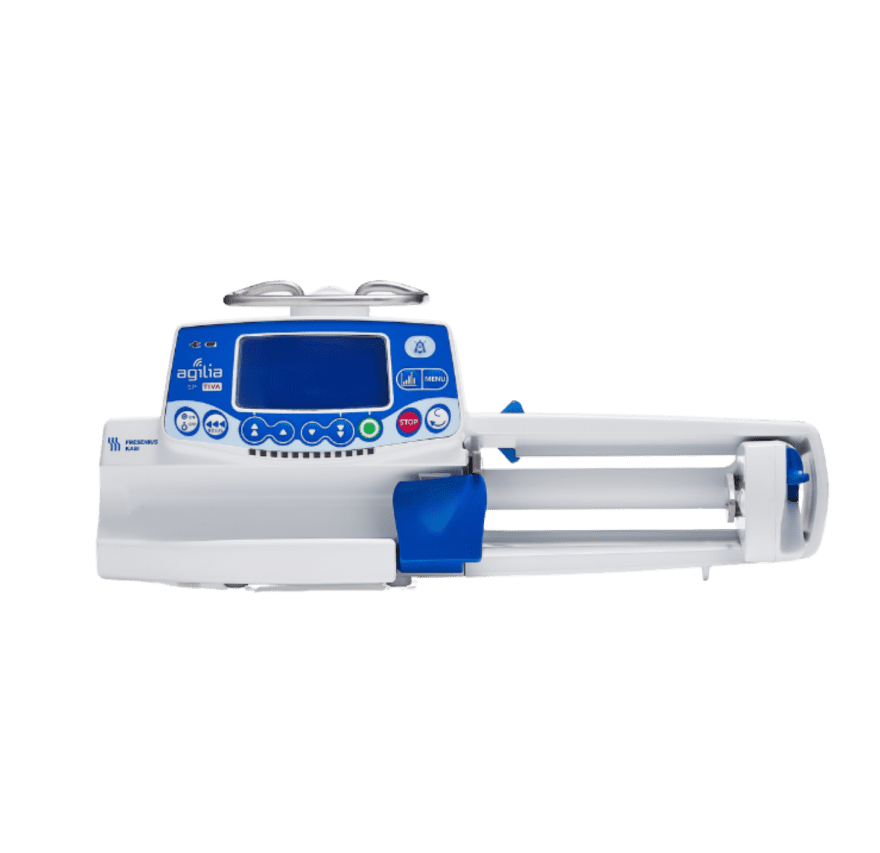

Agilia SP TIVA

Flow rate range: 0.1-1200 ml/h (depending on the syringe capacity).
Flow rate accuracy: ± 1% on mechanism ; ± 2 % on syringes.
Syringe capacities: 5,10, 20, 30/35, 50/60 CC.
Infusion modes
- ml/h.
- Dose rate.
  Dose units: ng, μg, mg, cal, kcal, U, kU, mmol, mol, Kmol / kg.
  Time units: 24h / h / min.
  Dilution setting: X units / ml or X units / Y ml.
- Volume or dose / time: 0.1-99.9 units ; 00h01- 96h00.
- Volume limit: 0.1-999.9 ml.
TCI Functions: Injectomat® TIVA Agilia is an IV anaesthesia system incorporating pharmacokinetics models for Propofol, Remifentanil, Sufentanil in plasma or effect mode.
Bolus: Manual bolus: Rate: 50 -1200 ml/h; 50 ml/h increment. Programmed bolus (dose or volume/time): 0.1-99.9 units / 0.1-1200 ml/time auto-calculation.
Programming modes: No drug names: infusion without any display of the drug names. Drug labelling: infusion with the drug names. Vigilant® Drug’Lib: the secured IV Administration mode with a drug library.
Drug labelling: Display of the drug name based on a list of 50 pre-set drug names.
Drug libraries: Drug parameters, infusion, bolus and loading dose parameters, authorised infusion modes, infusion mode per default. Inititial drug library of 50 drugs adjustable with Vigilant®, the IV Medication Safety Solution. Up to 120 drugs (depending on comment size) storable in 4 different drug libraries.
Pressure modes: 2 modes available: variable or 3 pre-set levels – From 100 to 900 mmHg, 50 mmHg increment.
DPS The Dynamic Pressure System – DPS – warns of pressure variations. A risk of obstruction or a possible leak in the infusion line can thus be anticipated.
Anti-bolus system: Reduces significantly bolus after occlusion release (0.2 ml max).

Agilia VP

Flow rate range: 0.1-1200 ml/h. Flow rate can be limited according to drug name
Flow rate accuracy: +/- 5% and even better in most clinical situations
Syringe capacities: 5,10, 20, 30/35, 50/60 CC.
Infusion modes
ml/h mode, Volume + Flow rate, Volume + time, Flow rate + time, Volume + time + Rate
Infusion OCS Patent:
The Occlusivity Check System is the only auto-test to check the good working order of the pump in association with its set and thus preventing risk of free-flow
Bolus: Direct bolus: Rate 50-1200 ml/h (50ml /h increment)
Pressure modes:
- No drug name: Infusion without any display of the drug names
- Drug Labelling: Infusion with the drug names displayed
- Agilia Vigilant Drug Lib: the secured IV administration mode by soft and hard limit
2 Pressure Modes: Variable or 3 pre-set levels –Range from 50 – 750mmHg.
DPS: The Dynamic Pressure System – DPS – warns of pressure variations. A risk of obstruction or a possible leak in the infusion line can thus be anticipated
Dimension (H/W/D) / Weight: 1135 X 190 X 170 mm / ~ 2 kg
Battery: Li-ion Smart Battery, Battery life (when fully charged): >8 h at 125ml/h
Power supply: 100V – 240V ~50/60Hz with functional earth

Agilia VP MC

Flow rate range: 0.1-1500 ml/h, Flow rate can be limited according to drug name
Flow rate accuracy: +/- 5% and even better in most clinical situations
Infusion modes
- ml/h mode, Volume + Flow rate, Volume + time, Flow rate + time, Volume + time + Rate, Ramp-up / Ramp-down, Sequential / Intermittent, Secondary / Piggyback
- Dose rate modes: Dose units: ng/h, ng/kg/min, ng/kg/h, μg/min, μg/h, μg/kg/min, μg/kg/h, mg/min, mg/h, mg/24h, mg/kg/min, mg/kg/h, mg/kg/24h, mg/m²/h, mg/m²/24h, g/h, g/kg/min, g/kg/h, g/kg/24h, mmol/h, mmol/kg/h, mmol/kg/24h, mU/min, mU/kg/min, mU/kg/h, U/min, U/h, U/kg/min, U/kg/h, kcal/h, kcal/24h, kcal/kg/h, mEq/min, mEq/h, mEq/kg/min, mEq/kg/h, mL/kg/24h, mL/kg/h.
Infusion OCS Patent:
The Occlusivity Check System is the only auto-test to check the good working order of the pump in association with its set and thus preventing risk of free-flow
Bolus: 1500 ml/h Adjustable from 50mL/h to 1500 mL /h by 50mL/h increments Direct or Programmable
Programming Modes:
- No drug name: Infusion without any display of the drug names
- Drug Labelling: Infusion with the drug names displayed
- Agilia Vigilant Drug Lib: the secured IV administration mode by soft and hard limit
2 Pressure Modes: Variable or 3 pre-set levels –Range from 50 – 750mmHg.
DPS: The Dynamic Pressure System – DPS – warns of pressure variations. A risk of obstruction or a possible leak in the infusion line can thus be anticipated
Dimension (H/W/D) / Weight: 1135 X 190 X 170 mm / ~ 2 kg.
Battery: Li-ion Smart Battery, Battery life (when fully charged): >8 h at 125ml/h
Power supply: 100V – 240V ~50/60Hz with functional earth

Infusia VP7

Flow rate range:
- 1.0 ml/h – 1200 ml/h
- 1.0 – 99.9 ml/h, 0.1 ml/h increment
- 100 – 1200 ml/h, 1 ml/h increment
- 1 – 400 drops/min, 1 drop/min increment
Flow rate accuracy: Â± 5 %
Volume to infuse: 0 – 9999 ml, 1 ml increment
Infusion modes
- Rate setting mode – ml/h, drops/min
- Time setting mode – minutes, ml/h, drops/min
- Volumetric setting mode – ml/h
Time of infusion: 1 – 1999 min, 1 min increment minimum
Priming: Manual or by using the purge/bolus function of the pump
Bolus rate:
- 1 – 1200 ml/h
- 0.1 – 99.9 ml/h, 0.1 ml/h increment
- 100 – 1200 ml/h, 1 ml/h increment
Purge rate: 600 ml/h
Free flow protection: Anti-free flow clamp when door is closed
End of infusion: Automatic KVO at the end of infusion: 1 ml/h if < 10 ml/h infusion rate, otherwise, 3 ml/h
Data log event: 5,000 events

Link + Agilia®

Features

More Safety

- Central display of the IV pumps and Link+ Agilia status is a safety enhancement of the new user-centered design.
- Easy-to-clean design ensures better disinfection.
- Connected to your Nurse Call System, Link+ Agilia saves you time.

More convenience

- Link+ Agilia stacks, powers and centralizes data for 4, 6 or 8 Agilia IV Infusion pumps and reduces the number of power cables to one.
- IV pump installation and removal are easy on the Link+ Agilia.

More efficiency

- Captures and stores infusion data automatically in your hospital IT system.
- The central alarm display is visible 360º from a distance.

CONOX

Two monitoring solutions in one device, using one single sensor. CONOX is a non-invasive depth of anesthesia monitor designed to help the anesthesiologist assess patient brain activity and to rapidly detect how certain drugs are affecting the patient.

MRI Guard Agilia®

MRI Guard Agilia takes Agilia infusion pumps into magnetic resonance units.

The MRI Guard Agilia is shielded externally to prevent interference generated by the Agilia infusion pumps from adversely affecting the MR image quality, and it shields the infusion pumps against electromagnetic disturbances from the MRI system.

Amika®

Amika is an ambulatory volumetric pump intended to be used for administration of fluids through transnasal or percutaneous feeding tubes. Amika delivers fluids in a continuous mode using a linear peristaltic pumping mechanism.

Features

Designed for more safety

Dedicated enteral giving sets designed with ENPlus and ENLock
Latest sensor technology for enhanced detection capability
Keypad and Settings Lock functions for a safer use of Amika^® by the patient

Intuitive for higher efficiency

Graphical symbol-based display for rapid and universal understanding
Ergonomic and robust design suitable for hospital and homecare
Direct access to main functions to optimize workflow

Convenient for better comfort

Silent operating
Compact design and long battery life for high mobility
Multiple possibilities of pump settings to adapt to all environments
Versatile pump holder usable with a wide range of supports

CATSmart

Fresenius Kabi introduces CATSmart. The unique continuous red cell separation process based on Continuous Flow technology is designed for recycling blood intra- and post-OR during cardiac, orthopedic or vascular surgery. CATSmart is the only autotransfusion device on the market using Continuous Flow technology which guarantees an early access to RBC at any time with a reliable quality.

Features

Clinical performance benefits:

- Consistently high hematocrit
- Excellent wash out performance of albumin, potassium, heparin, free hemoglobin
- Complete elimination of non-emulsified fat
- Fastest processing time due to Continuous Flow technology

Ergonomic benefits:

Volume independent „one-fits-all” washing chamber
Unique height adjustment for better handling
Autostart function
Intelligent and silent modular vacuum source
A colored intuitive touchscreen
Efficient data transfer management

Fresenius Kabi

Agilia SP

Agilia SP MC

Agilia SP PCA

Agilia SP TIVA

Agilia VP

Agilia VP MC

Infusia VP7

Link + Agilia®

CONOX

MRI Guard Agilia®

Amika®

CATSmart

Product Brands

About Company

Visions

Missions

Brands We Provide

Contact Us

Ground Floor, Lot 35, Block D, Austin Business Park, Jalan Penampang, 88300 Kota Kinabalu, Sabah.

info@dksolutions.com.my
